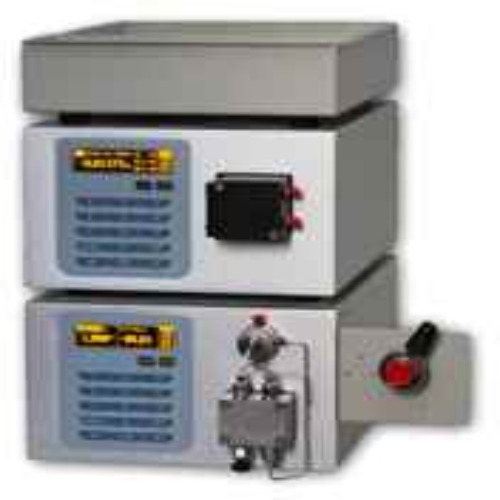

HPLC Isocratic System

Name: HPLC Isocratic System
Brand: VIMAL ENTERPRISE
Price: 750000 INR
Availability: InStock

Price 750000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

HPLC Isocratic System Specification

Phase
Single Phase

Operating Temperature
10C to 40C

Protection Level
IP20

Rated Voltage
230 V

Humidity
<85% non-condensing

Input Current
0.7 A

Efficiency
High separation efficiency

Mounting Type
Benchtop

Frequency
50/60 Hz

Main Material
Powder coated MS body, stainless steel (wet parts)

Processing Type
Isocratic

Condition
New

Function
Chromatographic separation and detection

Application
Analytical laboratories, pharma, biochemistry, chemical research

Dimension (L*W*H)
420 x 380 x 240 mm

Power Mode
Electric

Voltage
230 V AC 10%, 50/60 Hz

Power Consumption
150 W

Battery Life
N/A (mains operated)

Accessories
Manual, cables, solvent tray, bottle caps, maintenance tools

Pump Type
Reciprocating piston, low-pulse

Weight
Approx. 18 kg

Noise Level
<0.5 mAU

Maximum Pressure
4000 psi (280 bar)

Data Output
Analog/digital, USB connectivity

Safety Features
Leak detection, flow sensor, auto shut-off

Flow Rate Range
0.1-10 mL/min adjustable

Retention Time Reproducibility
<0.08% RSD

Sample Injection Volume
20 L loop standard

Detector Type
UV-Vis Detector, 190-700 nm

Reservoir Capacity
2 x 1L bottles

System Type
Isocratic HPLC with manual injector

Display
Digital LCD Display

Wavelength Accuracy
1 nm

HPLC Isocratic System Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Paypal, Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Western Union

Supply Ability
5 Per Week

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

About HPLC Isocratic System

Pumping System HPLC1IS Isocratic System

Advanced and Superior High Pressure Pump achieves accurate solvent delivery with high precision and low function

Advanced and innovative design modules provide high reliability and acuuracy for longar opreation

Reliable and Precise Chromatographic Separation

Designed for demanding applications, this HPLC Isocratic System ensures high separation efficiency with reproducible retention times (<0.08% RSD). Its reciprocating piston pump minimizes pulse effects, allowing for stable and accurate flow rates. Suitable for a range of analytical tasks, it is an ideal solution for laboratories prioritizing both reliability and reproducibility in chromatographic analysis.

Comprehensive Safety and User-Friendly Operation

Equipped with advanced safety features such as leak detection, flow sensors, and auto shut-off, the system enhances user protection while minimizing downtime. The digital LCD provides intuitive monitoring, while USB connectivity supports seamless data management and export. Its durable construction and benchtop design make it easy to integrate into standard laboratory environments.

FAQ's of HPLC Isocratic System:

Q: How does the isocratic HPLC system perform chromatographic separation?

A: This system employs a reciprocating piston pump to maintain a constant mobile phase composition and flow rate, ensuring high efficiency and reproducibility in separating chemical compounds during analysis.

Q: What are the main benefits of using this HPLC isocratic system in analytical laboratories?

A: Key benefits include high retention time reproducibility (<0.08% RSD), efficient UV-Vis detection across 190-700 nm, robust safety features, and a user-friendly digital interface. Its high separation efficiency is ideal for routine and specialized analyses.

Q: When should I use an isocratic HPLC system instead of a gradient system?

A: Isocratic systems are best suited for samples where the components are well-resolved within a single mobile phase composition. They are typically used for routine analysis where simplicity, repeatability, and low maintenance are desired.

Q: Where is this HPLC system typically installed within a laboratory?

A: This unit is benchtop-mounted and is designed for use in environments such as analytical labs, pharmaceutical quality control, biochemistry labs, and chemical research facilities due to its compact footprint and operational efficiency.

Q: What is the process for injecting samples using this system?

A: Samples are manually introduced into the system via a 20 L loop injector. This allows precise sample volumes to enter the chromatographic column, ensuring consistent and reliable analysis.

Q: How does the system ensure safety during operation?

A: Safety is maintained through integrated leak detection, a flow sensor, and automatic system shut-off in case of anomalies. These features help prevent equipment damage and enhance operator safety.

Q: What types of connectivity and data output does the system offer?

A: The system provides both analog and digital data output, including USB connectivity, enabling easy integration with laboratory data processing and archival systems.
