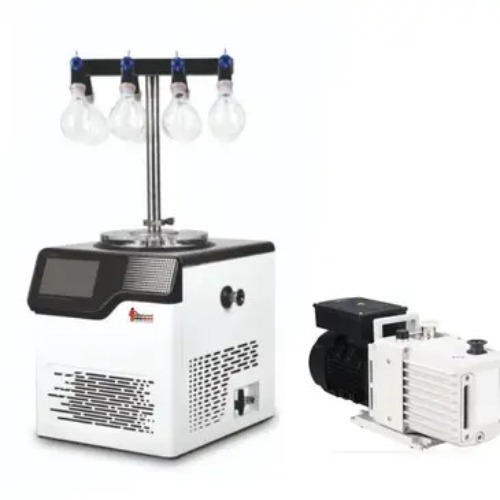

Lyophilizer Freeze Dryer

Name: Lyophilizer Freeze Dryer
Brand: VIMAL ENTERPRISE
Price: 475000 INR
Availability: InStock

Price 475000 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Lyophilizer Freeze Dryer Specification

Mounting Type
Floor-standing

Rated Voltage
220V

Humidity
80% RH (non-condensing)

Output Voltage
220V

Frequency
50 Hz

Operating Temperature
-50C to +40C

Efficiency
High freeze-drying efficiency

Phase
Single Phase

Input Current
5.5 A

Protection Level
IP21

Main Material
Stainless steel chamber and racks

Processing Type
Batch Processing

Condition
New

Function
Sample freezing and drying by sublimation under vacuum

Application
Pharmaceutical, Laboratory, Food Industry, Research Institutes

Dimension (L*W*H)
650 x 630 x 1200 mm

Power Mode
Electric

Voltage
220V

Power Consumption
1200 W

Accessories
Stainless steel shelves, Vacuum pump, Sealing gaskets

Max Condenser Capacity
3 kg / 24 hours

Shelf Area
0.21 m2

Shelf Spacing
70 mm

Vacuum Degree
< 10 Pa

Noise Level
60 dB

Sample Tray
4 trays

Condenser Temperature
-55C 2C

Safety Features
Overload and overheat protection

Control System
Microprocessor based digital display

Door Material
Transparent acrylic

Cooling Method
Air cooling

Chamber Volume
10 liters

Defrost Type
Automatic

Lyophilizer Freeze Dryer Trade Information

Minimum Order Quantity
1 Number

FOB Port
Nhava Sheva Port

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Telegraphic Transfer (T/T), Western Union

Supply Ability
5 Per Month

Delivery Time
1 Week

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Certifications
IQ PQ OQ Document Included Test Certificate

About Lyophilizer Freeze Dryer

Lyophilizer Freeze Drying removes water from frozen materials by turning ice directly into vapor (sublimation)without becoming liquid. This process uses heat to vaporize the ice, vacuum to remove the vapor, and a coldcollector to condense it back into ice.

Touch Screen Display, Simple operation Power Off Auto recovery Function Display - condenser temperature, sample temperature and vacuum, display graph, Vacuum and temperature correction to ensure long-term accuracy in use. Power-off auto-recovery function: Allows customers to set the power-off restart time Alarm and prompt functions to prevent misoperation Vacuum System - High-precision vacuum gauge. Set vacuum pump start and stop required condenser temperature Oil mist filter

Advanced Vacuum Freeze-Drying Technology

Engineered for high-performance sample preservation, the lyophilizer creates a vacuum below 10 Pa, allowing water to sublimate directly from solid to gas. This process ensures gentle and effective drying, retaining biological and chemical integrity while supporting diverse applications in research, pharmaceuticals, and food processing.

User-Friendly Design and Intelligent Control

With an intuitive microprocessor-based digital display and automatic defrost, operation is straightforward and precise. The floor-standing unit houses a 10-liter stainless steel chamber and includes features like overload and overheat protection, transparent acrylic door for monitoring, and IP21-rated protection for safe laboratory or industrial environments.

FAQ's of Lyophilizer Freeze Dryer:

Q: How does the lyophilizer freeze dryer work to preserve samples?

A: This freeze dryer operates by freezing material and then creating a vacuum (below 10 Pa) that allows water to sublimate from solid to gas without passing through the liquid phase. This gentle drying process protects the physical and chemical structure of samples, making it ideal for pharmaceuticals, food, and biological research.

Q: What types of materials can I process with this freeze dryer?

A: The device is suitable for a wide range of applications, including pharmaceuticals, food samples, laboratory chemicals, and biological specimens. Its stainless-steel chamber and racks, combined with precise temperature and vacuum control, make it adaptable for both sensitive and bulk materials.

Q: When should I use the automatic defrost feature during operation?

A: The automatic defrost function should be employed after a freeze-drying cycle or when ice accumulates on the condenser at -55C. This feature ensures optimal condenser efficiency and shortens downtime between processing batches by rapidly removing accumulated ice.

Q: Where is the ideal location to install this floor-standing freeze dryer?

A: Install the unit in a well-ventilated laboratory or industrial setting with adequate space (650 x 630 x 1200 mm). Ensure environmental humidity does not exceed 80% RH (non-condensing) and maintain ambient temperatures between -50C and +40C for optimal performance.

Q: What are the main benefits of using this lyophilizer in research or industry?

A: This freeze dryer offers high efficiency, precise control, reliable sample integrity, and safety features such as overload and overheat protection. Its user-friendly design, robust construction, and versatility provide researchers and manufacturers with a reliable tool for consistent, high-quality freeze-drying results.

Q: How do I monitor the progress of the freeze-drying process?

A: The transparent acrylic door allows for direct visual inspection, while the microprocessor-based digital display provides real-time data on operating conditions such as temperature, vacuum degree, and cycle status, enabling continuous process monitoring and control.
